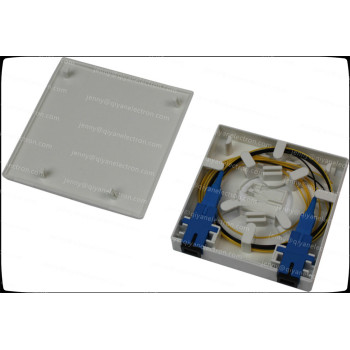

Mini plastic 1/2/4 Core SC LC Ftth/Fttx Fiber Termination Box Wall Mount FTB-86

Mini plastic 1/2/4 Core SC LC Ftth/Fttx Fiber Termination Box Wall Mount FTB-86

Description：

This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port. It supports splicing, distribution, mechanical connection and wall mounted installation. The capacity of this box can be 1 core, 2 cores and 4 cores.

Features：
1.  ABS material used ensures the body strong and light.
2.  Easy installations: Mount on wall.
3.  Easy operation: plug fiber with no need to open the shell.
4.  Fiber cable inlets from every direction, supporting the cable inlets for different scenarios.
5.  Adoptable adapter: SC, LC.
6.  Compact,low profile, wall mounted unit used for small and large business premise

Specification:
> Dimensions (W*H*D): 86mm*86mm*24mm
> Adapter Capacity: Accommodates 4 fibers with LC adapters; 2 fibers with SC adapters
> Number of Cable Entrance/Exit: Up to 4
> Pigtail: G652D  Ф0.9mm, 0.5m or as per request
> Drop Cable(flat): Indoor flat drop cable 2 x 3mm
> Drop Cable(round): Φ5mm～Φ10mm
> Curvature Radius : ≥15mm
> Optional Accessories: Adapters, Pigtails, Heat Shrink Tubes

Application:
> FTTH / FTTX system
> LAN WAN MAN network
> GPON ODN network
> Telecommunication
